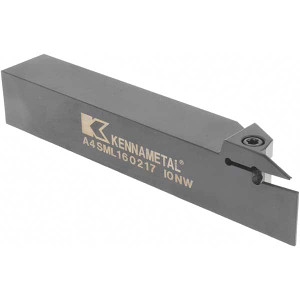

Kennametal 0.067" Max Depth, 0.079" Min Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses A4..02.. Inserts, A4SM Toolholder, Series A4 2976494 - 01762038
Brand: Kennametal- SKU:
- 01762038
- ID:
- 686052
$280.35
Kennametal 0.067" Max Depth, 0.079" Min Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses A4..02.. Inserts, A4SM Toolholder, Series A4
Manufacturer Part #: 2976494
S/N: 01762038
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0670 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..02.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 117.40 |
| Shank Length (Decimal Inch) | 4.6220 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | A4 |
| Overall Length (mm) | 152.40 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.2400 |
| Head Length (Decimal Inch) | 1.3400 |
| Coating Classification | Kennametal |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
