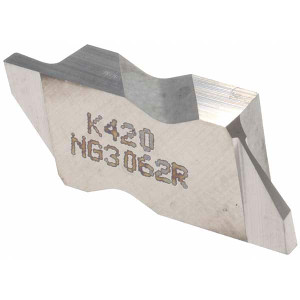

Kennametal NG3062R K420 Carbide Grooving Insert Uncoated, RH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch 1113404 - 01773951

Kennametal NG3062R K420 Carbide Grooving Insert Uncoated, RH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch 1113404 - 01773951

Brand:   Kennametal
SKU:
01773951
ID:
649620
callling
$43.15
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NG3062R K420 Carbide Grooving Insert Uncoated, RH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch

Manufacturer Part #: 1113404

S/N: 01773951

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNG
Cutting Width (Decimal Inch)0.0622
Cutting Width (mm)1.58
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.0941
Maximum Depth of Cut (mm)2.39
Insert MaterialCarbide
Manufacturer GradeK420
Full RadiusNo
Corner Radius (Decimal Inch)0.0075
Corner Radius (mm)0.19
RakeNeutral
Insert Size3062
Material GradeC6
Maximum Depth Of Cut Range (Decimal Inch)0.0750 to 0.1000
Maximum Depth Of Cut Range (mm)2.00 to 3.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
UNSPSC Code23242105
Included Angle Degree55
Coating/FinishBright/Uncoated
