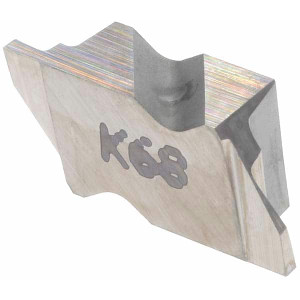

Kennametal NG2031R K68 Carbide Grooving Insert Uncoated, RH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Top Notch 1113562 - 01869379

Kennametal NG2031R K68 Carbide Grooving Insert Uncoated, RH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Top Notch 1113562 - 01869379

Brand:   Kennametal
SKU:
01869379
ID:
649637
callling
$38.56
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NG2031R K68 Carbide Grooving Insert Uncoated, RH, 0.79mm Cutting Width, 1.27mm Max Depth, Series Top Notch

Manufacturer Part #: 1113562

S/N: 01869379

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNG
Cutting Width (Decimal Inch)0.0311
Cutting Width (mm)0.79
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.0500
Maximum Depth of Cut (mm)1.27
Insert MaterialCarbide
Manufacturer GradeK68
Full RadiusNo
Corner Radius (Decimal Inch)0.0035
Corner Radius (mm)0.09
RakeNeutral
Insert Size2031
Material GradeC3
Maximum Depth Of Cut Range (Decimal Inch)0.0000 to 0.0750
Maximum Depth Of Cut Range (mm)0.00 to 2.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
UNSPSC Code23242105
MSC/Manufacturer NumberNG2031R/L
Insert Height (Decimal Inch)0.2190
Included Angle Degree55
Coating/FinishBright/Uncoated
