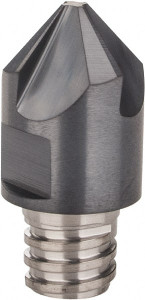

Iscar MMECF.375-4T06 IC908 Carbide Chamfer Mill Tip Insert TiAlN Finish, 4 Flutes, 3/8" Diam, 0.15" Depth, Series Multimaster 5621387 - 02045334
Brand: Iscar- SKU:
- 02045334
- ID:
- 663655
$119.07
Iscar MMECF.375-4T06 IC908 Carbide Chamfer Mill Tip Insert TiAlN Finish, 4 Flutes, 3/8" Diam, 0.15" Depth, Series Multimaster
Manufacturer Part #: 5621387
S/N: 02045334
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Milling Tip Type | Chamfer |
| Milling Tip Style | MM ECF |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Cutting Diameter (Decimal Inch) | 0.0730 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM ECF |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0000 |
| Cutting Width (Decimal Inch) | 0.0730in |
| Functional Length (Decimal Inch) | 0.5120 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Standards | ANSI |
| Milling Tip Full Description | MM ECF45-.375-4T06 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5621387 |
| Chamfer Angle | 45degree |
| Overall Length (Decimal Inch) | 0.5120in |
| Insert Size | 45-.375 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 60 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1500in |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 4 |
| Extension From Holder (Inch) | 0.5120 |
