Gardner Spring 0.3" OD 0.812" Free Length Precision Compression Spring 38 Lb Spring Rating, 0.042" Wire, 16.25 Lb Max Workload, 0.39" Solid Height, Music Wire 36052G - 02085504

Gardner Spring 0.3" OD 0.812" Free Length Precision Compression Spring 38 Lb Spring Rating, 0.042" Wire, 16.25 Lb Max Workload, 0.39" Solid Height, Music Wire 36052G - 02085504

Brand:   Gardner Spring
SKU:
02085504
ID:
583871
callling
$6.48
Current Stock:
Adding to cart… The item has been added

Gardner Spring

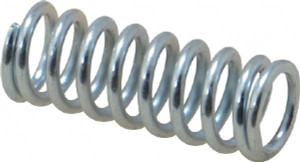

Gardner Spring 0.3" OD 0.812" Free Length Precision Compression Spring 38 Lb Spring Rating, 0.042" Wire, 16.25 Lb Max Workload, 0.39" Solid Height, Music Wire

Manufacturer Part #: 36052G

S/N: 02085504

UNSPSC: 31161904

(Minimum Order Quantity=1, Package Quantity=5)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)0.3000in
Spring Rate38.0000in.lb
End TypeClosed, Ground
Maximum Work Load (N)72.29
Maximum Work Load (Lb.)16.2500
MaterialMusic Wire
FinishPlain
Wire Size (Decimal Inch)0.0421
Hole Diameter (Decimal Inch)0.3120
Spring TypePrecision
Solid Height (Decimal Inch)0.3900
Free Length (Decimal Inch)0.8120
ColorSilver
UNSPSC Code31161904
