Gardner Spring 0.42" OD 1-1/2" Free Length Precision Compression Spring 15.5 Lb Spring Rating, 0.047" Wire, 15.5 Lb Max Workload, 0.519" Solid Height, Music Wire 36080G - 02085587

Gardner Spring 0.42" OD 1-1/2" Free Length Precision Compression Spring 15.5 Lb Spring Rating, 0.047" Wire, 15.5 Lb Max Workload, 0.519" Solid Height, Music Wire 36080G - 02085587

Brand:   Gardner Spring
SKU:
02085587
ID:
583749
callling
$4.90
Current Stock:
Adding to cart… The item has been added

Gardner Spring

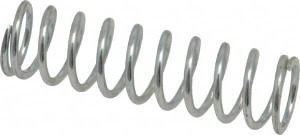

Gardner Spring 0.42" OD 1-1/2" Free Length Precision Compression Spring 15.5 Lb Spring Rating, 0.047" Wire, 15.5 Lb Max Workload, 0.519" Solid Height, Music Wire

Manufacturer Part #: 36080G

S/N: 02085587

UNSPSC: 31161904

(Minimum Order Quantity=1, Package Quantity=5)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)0.4200in
Free Length (Inch)1-1/2in
Spring Rate15.5000in.lb
End TypeClosed, Ground
Maximum Work Load (N)68.95
Maximum Work Load (Lb.)15.5000
MaterialMusic Wire
FinishPlain
Wire Size (Decimal Inch)0.0469
Hole Diameter (Decimal Inch)0.4370
Spring TypePrecision
Solid Height (Decimal Inch)0.5190
Free Length (Decimal Inch)1.5000
ColorSilver
StandardsAISI 302, ASTM A228, ASTM A313
UNSPSC Code31161904
