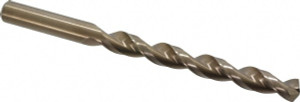

Cleveland Twist Drill 23/64" 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-7/8" OAL, Split Point C16574 - 02145670
Brand: Cleveland Twist Drill- SKU:
- 02145670
- ID:
- 718812
$43.23
Cleveland Twist Drill 23/64" 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-7/8" OAL, Split Point
Manufacturer Part #: C16574
S/N: 02145670
UNSPSC: 23241634
UPC: 697334165743
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Gold, Oxide |
| Flute Length (Inch) | 3-1/2 |
| Overall Length (Inch) | 4-7/8 |
| Flute Length (mm) | 88.90 |
| Flute Length (Decimal Inch) | 3.5000 |
| Series | 2075 |
| Shank Diameter (Inch) | 23/64 |
| Shank Length (mm) | 34.92 |
| Shank Length (Decimal Inch) | 1.3800 |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | ASME B94.11M, DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Material Grade | M42 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
