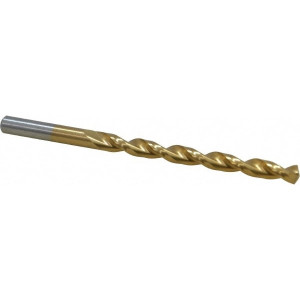

Cleveland Twist Drill 15/64" 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-7/8" OAL, Split Point C16678 - 02145886
Brand: Cleveland Twist Drill- SKU:
- 02145886
- ID:
- 718709
$26.07
Cleveland Twist Drill 15/64" 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-7/8" OAL, Split Point
Manufacturer Part #: C16678
S/N: 02145886
UNSPSC: 23241634
UPC: 697334166788
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 15/64 |
| Drill Bit Size (Decimal Inch) | 0.2344 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Steel, Cast Iron |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-5/8 |
| Shank Diameter (Decimal Inch) | 0.2344 |
| Overall Length (mm) | 98.43 |
| Overall Length (Inch) | 3-7/8 |
| Overall Length (Decimal Inch) | 3.8750 |
| Flute Length (mm) | 66.68 |
| Flute Length (Decimal Inch) | 2.6250 |
| Series | 2075T |
| Shank Diameter (Inch) | 15/64 |
| Shank Length (mm) | 31.75 |
| Shank Length (Decimal Inch) | 1.2500 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | ASME B94.11M, DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | M42 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
