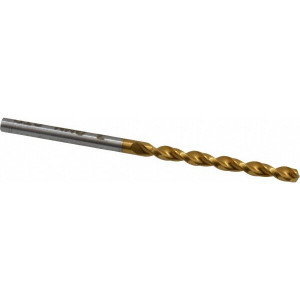

Cleveland Twist Drill 3mm 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2.402" OAL, Split Point C16699 - 02147411
Brand: Cleveland Twist Drill- SKU:
- 02147411
- ID:
- 718556
$17.34
Cleveland Twist Drill 3mm 135° Cobalt Jobber Drill TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2.402" OAL, Split Point
Manufacturer Part #: C16699
S/N: 02147411
UNSPSC: 23241634
UPC: 697334166993
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 3.00 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Titanium Nitride |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Overall Length (Decimal Inch) | 2.4020 |
| Flute Length (Decimal Inch) | 1.2990 |
| Series | 2075T |
| Shank Length (mm) | 28.00 |
| Shank Length (Decimal Inch) | 1.0000 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | ASME B94.11M, DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 3.00 - 4.00 |
| Material Grade | M42 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
