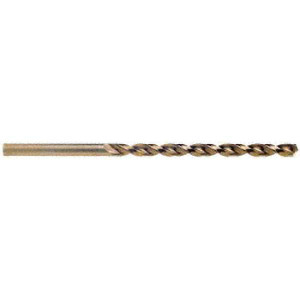

Cleveland Twist Drill 29/64" 135° Parabolic Flute Cobalt Taper Length Drill Bit Oxide/Gold Finish, 4-3/4" Flute Length, 7-1/2" OAL, Split Point, Straight Shank, Series 2575 C16801 - 02147916
Brand: Cleveland Twist Drill- SKU:
- 02147916
- ID:
- 744661
$88.53
Cleveland Twist Drill 29/64" 135° Parabolic Flute Cobalt Taper Length Drill Bit Oxide/Gold Finish, 4-3/4" Flute Length, 7-1/2" OAL, Split Point, Straight Shank, Series 2575
Manufacturer Part #: C16801
S/N: 02147916
UNSPSC: 23241600
UPC: 697334168010
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 29/64 |
| Drill Bit Size (Decimal Inch) | 0.4531 |
| Tool Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Oxide, Gold |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight |
| Flute Length (Decimal Inch) | 4.7500 |
| Material Application3 | Aluminum, Brass, Carbon Steel, Cast Iron, Nickel Alloy, Plastic, Stainless Steel, Tool Steel |
| Overall Length (mm) | 190.50 |
| Overall Length (Decimal Inch) | 7-1/2 |
| Series | 2575 |
| Flute Length (Inch) | 4-3/4 |
| Flute Length (mm) | 120.65 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | Heavy-Duty |
| Material Grade | M42 |
