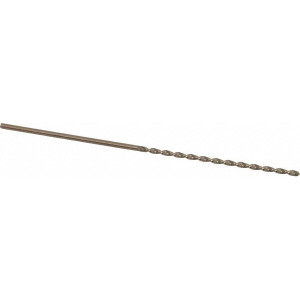

Cleveland Twist Drill #49 135° Parabolic Flute Cobalt Taper Length Drill Bit Oxide/Gold Finish, 2" Flute Length, 3-3/4" OAL, Split Point, Straight Shank, Series 2575 C16772 - 02148435
Brand: Cleveland Twist Drill- SKU:
- 02148435
- ID:
- 744493
$28.85
Cleveland Twist Drill #49 135° Parabolic Flute Cobalt Taper Length Drill Bit Oxide/Gold Finish, 2" Flute Length, 3-3/4" OAL, Split Point, Straight Shank, Series 2575
Manufacturer Part #: C16772
S/N: 02148435
UNSPSC: 23241600
UPC: 697334167723
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #49 |
| Drill Bit Size (Decimal Inch) | 0.0730 |
| Tool Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Coated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight |
| Threaded Shank | No |
| Shank Diameter (mm) | 1.85 |
| Flute Length (Decimal Inch) | 2.0000 |
| Material Application3 | Aluminum, Brass, Carbon Steel, Cast Iron, Nickel Alloy, Plastic, Stainless Steel, Tool Steel |
| Overall Length (mm) | 95.25 |
| Overall Length (Decimal Inch) | 3-3/4 |
| Series | 2575 |
| Shank Diameter (Decimal Inch) | 0.0730 |
| Shank Length (Decimal Inch) | 1.7500 |
| Shank Length (mm) | 44.45 |
| Flute Length (Inch) | 2 |
| Shank Length (Inch) | 1-3/4 |
| Flute Length (mm) | 50.80 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | ASME B94.11M, DIN 340 |
| Specification Number | DIN 338 |
| Drill Bit Grade | Heavy-Duty |
| Material Grade | M42 |
