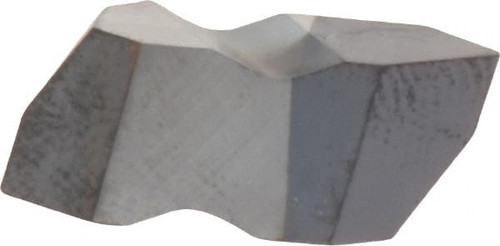

Kennametal NT3R KC5010 Carbide Threading Insert TiAlN Finish, Internal/External, Partial Profile 60°, 2-5mm, 1.25-4mm, Series Top Notch 1796051 - 02160927
Brand: Kennametal- SKU:
- 02160927
- ID:
- 666673
$37.94
Kennametal NT3R KC5010 Carbide Threading Insert TiAlN Finish, Internal/External, Partial Profile 60°, 2-5mm, 1.25-4mm, Series Top Notch
Manufacturer Part #: 1796051
S/N: 02160927
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NT |
| Insert Material | Carbide |
| Manufacturer Grade | KC5010 |
| Material Grade | C3, C4 |
| Thread Standard | Partial Profile 60 Degree |
| Insert Hand | Right Hand |
| Internal Pitch | 2.00 to 5.00 mm, 5 to 12 TPI |
| External Pitch | 1.25-4.00 mm, 6-20 TPI |
| Included Angle | 60 |
| Series | Top Notch |
| Coating Process | PVD |
| Tip to Top of Insert (Decimal Inch) | 0.0980 |
| Tip to Top of Insert (mm) | 2.49 |
| Corner Radius (Decimal Inch) | 0.0067 |
| Corner Radius (mm) | 0.17 |
| Thickness (mm) | 4.95 |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1949 |
| Finish Coating | TiAlN |
| Thread Type | Internal, External |
| UNSPSC Code | 23291804 |
