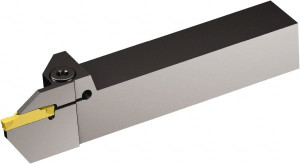

Sandvik Coromant 32mm Max Depth, 4.75mm to 6.35mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses N123J2-0500-CM Inserts, RF123..B Toolholder, Series CoroCut 1-2 5740969 - 02183507
Brand: Sandvik Coromant- SKU:
- 02183507
- ID:
- 686147
$385.63
Sandvik Coromant 32mm Max Depth, 4.75mm to 6.35mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses N123J2-0500-CM Inserts, RF123..B Toolholder, Series CoroCut 1-2
Manufacturer Part #: 5740969
S/N: 02183507
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Maximum Groove Width (mm) | 6.35 |
| Minimum Groove Width (Decimal Inch) | 0.1870 |
| Minimum Groove Width (mm) | 4.75 |
| Toolholder Style | RF123..B |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | N123J2 |
| Insert Compatibility | N123J2-0500-CM |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 95.40 |
| Shank Length (Decimal Inch) | 3.7560 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | CoroCut 1-2 |
| Overall Length (mm) | 152.40 |
| Cutting Tool Application | Cut-Off, Grooving, Parting |
| Maximum Overhang (Inch) | 2.2440 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.0000 |
| Head Length (mm) | 25.40 |
| Manufacturers Catalog Number | RF123J126-16BM |
| Coolant Through | No |
| UNSPSC Code | 27112809 |
