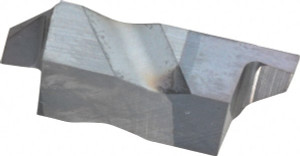

Kennametal NG3062R KC5010 Carbide Grooving Insert TiAlN Finish, RH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch 2598824 - 02200061

Kennametal NG3062R KC5010 Carbide Grooving Insert TiAlN Finish, RH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch 2598824 - 02200061

Brand:   Kennametal
SKU:
02200061
ID:
649731
callling
$35.29
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NG3062R KC5010 Carbide Grooving Insert TiAlN Finish, RH, 1.58mm Cutting Width, 2.39mm Max Depth, Series Top Notch

Manufacturer Part #: 2598824

S/N: 02200061

UNSPSC: 23242105

(Minimum Order Quantity=5, Multiples of 5, Package Quantity=1)

Specifications:

Insert StyleNG
Cutting Width (Decimal Inch)0.0622
Cutting Width (mm)1.58
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.0941
Maximum Depth of Cut (mm)2.39
Insert MaterialCarbide
Manufacturer GradeKC5010
Full RadiusNo
Corner Radius (Decimal Inch)0.0075
Corner Radius (mm)0.19
RakeNeutral
Insert Size3062
Material GradeC3, C4
Maximum Depth Of Cut Range (Decimal Inch)0.0750 to 0.1000
Maximum Depth Of Cut Range (mm)2.00 to 3.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
Coating ProcessPVD
UNSPSC Code23242105
MSC/Manufacturer NumberNG3062R/L
Insert Height (Decimal Inch)0.3440
Included Angle Degree55
Coating/FinishTiAlN
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
