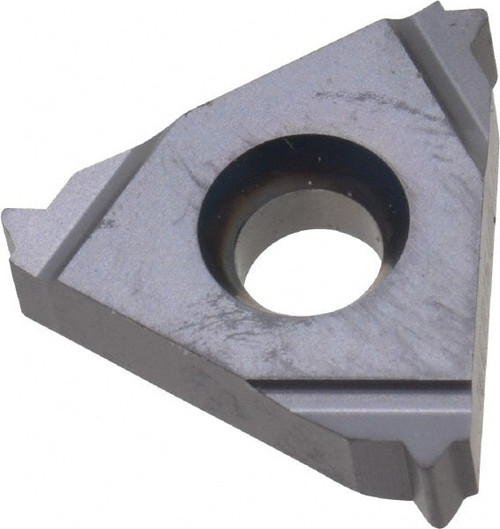

Kennametal LT16ER16UNJ KC5010 Carbide Laydown Threading Insert TiAlN Finish, RH External UNJ Thread, 16 TPI, 3/8" Inscribed Circle, 3.44mm Thick 1724338 - 02222016
Brand: Kennametal- SKU:
- 02222016
- ID:
- 665199
$54.32
Kennametal LT16ER16UNJ KC5010 Carbide Laydown Threading Insert TiAlN Finish, RH External UNJ Thread, 16 TPI, 3/8" Inscribed Circle, 3.44mm Thick
Manufacturer Part #: 1724338
S/N: 02222016
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ER |
| Insert Size Code | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5010 |
| Threads Per Inch | 16 |
| Thread Type | External |
| Thread Standard | UNJ |
| Insert Hand | Right Hand |
| Thickness (mm) | 3.44 |
| Coating Process | PVD |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.94 |
| Hole Diameter (Decimal Inch) | 0.1551 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Iso Code | LT16ER16UNJ |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0350 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0430 |
| Manufacturers Catalog Number | LT16ER16UNJ |
| Thickness (Decimal Inch - 4 Decimals) | 0.1430 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291804 |
