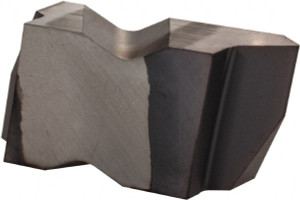

Kennametal NJF3007R24 KC5010 Carbide Threading Insert TiAlN Finish, External, UNJ, 24 TPI, Series Top Notch 1796395 - 02252971
Brand: Kennametal- SKU:
- 02252971
- ID:
- 666712
$41.17
Kennametal NJF3007R24 KC5010 Carbide Threading Insert TiAlN Finish, External, UNJ, 24 TPI, Series Top Notch
Manufacturer Part #: 1796395
S/N: 02252971
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NJF |
| Insert Material | Carbide |
| Manufacturer Grade | KC5010 |
| Material Grade | C3, C4 |
| Thread Standard | UNJ |
| Insert Hand | Right Hand |
| External Pitch | 24 TPI |
| Included Angle | 60degree |
| Series | Top Notch |
| Coating Process | PVD |
| Tip to Top of Insert (Decimal Inch) | 0.1409 |
| Tip to Top of Insert (mm) | 3.58 |
| Corner Radius (Decimal Inch) | 0.0067 |
| Corner Radius (mm) | 0.17mm |
| Thickness (mm) | 4.95mm |
| Insert Size | 3007 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1949in |
| Finish Coating | TiAlN |
| Thread Type | External |
| UNSPSC Code | 23291804 |
