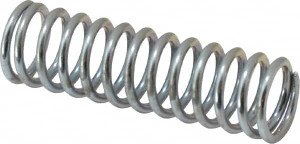

Gardner Spring 0.6" OD 2" Free Length Precision Compression Spring 26 Lb Spring Rating, 0.072" Wire, 30 Lb Max Workload, 0.939" Solid Height, Music Wire 36113G - 02313062
Brand: Gardner Spring- SKU:
- 02313062
- ID:
- 583758
$4.91
Gardner Spring 0.6" OD 2" Free Length Precision Compression Spring 26 Lb Spring Rating, 0.072" Wire, 30 Lb Max Workload, 0.939" Solid Height, Music Wire
Manufacturer Part #: 36113G
S/N: 02313062
UNSPSC: 31161904
(Minimum Order Quantity=1, Package Quantity=5)
Specifications:
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.6000in |
| Free Length (Inch) | 2in |
| Spring Rate | 26.0000in.lb |
| End Type | Closed, Ground |
| Maximum Work Load (N) | 133.45 |
| Maximum Work Load (Lb.) | 30.0000 |
| Material | Music Wire |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.0720 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 0.9390 |
| Free Length (Decimal Inch) | 2.0000 |
| Color | Silver |
| Standards | AISI 302, ASTM A228, ASTM A313 |
| Hole Diameter (Inch) | 5/8in |
| UNSPSC Code | 31161904 |
