Gardner Spring 0.72

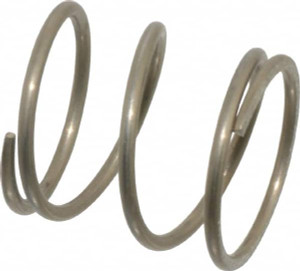

Gardner Spring 0.72" OD 3/4" Free Length Precision Compression Spring 20 Lb Spring Rating, 0.055" Wire, 11.3 Lb Max Workload, 0.221" Solid Height, Stainless Steel 36114GS - 02313849

Brand:   Gardner Spring
SKU:
02313849
ID:
583892
callling
$6.77
Current Stock:
Adding to cart… The item has been added

Gardner Spring

Gardner Spring 0.72" OD 3/4" Free Length Precision Compression Spring 20 Lb Spring Rating, 0.055" Wire, 11.3 Lb Max Workload, 0.221" Solid Height, Stainless Steel

Manufacturer Part #: 36114GS

S/N: 02313849

UNSPSC: 31161904

(Minimum Order Quantity=1, Package Quantity=5)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)0.7200in
Free Length (Inch)3/4in
Spring Rate20.0000in.lb
End TypeClosed, Ground
Maximum Work Load (N)50.25
Maximum Work Load (Lb.)11.3000
MaterialStainless Steel
FinishPlain
Wire Size (Decimal Inch)0.0551
Hole Diameter (Decimal Inch)0.7500
Spring TypePrecision
Solid Height (Decimal Inch)0.2210
Free Length (Decimal Inch)0.7500
ColorSilver
StandardsAISI 302, ASTM A228, ASTM A313
Hole Diameter (Inch)3/4in
UNSPSC Code31161904
