Gardner Spring 9mm OD 19mm Free Length Compression Spring 3.61 Lb Spring Rating, 33.15 Lb Max Workload, 7-1/2" Solid Height MC065-0190-M - 02314185

Gardner Spring 9mm OD 19mm Free Length Compression Spring 3.61 Lb Spring Rating, 33.15 Lb Max Workload, 7-1/2" Solid Height MC065-0190-M - 02314185

Brand:   Gardner Spring
SKU:
02314185
ID:
583921
UPC:
715153182717
callling
$8.25
Current Stock:
Adding to cart… The item has been added

Gardner Spring

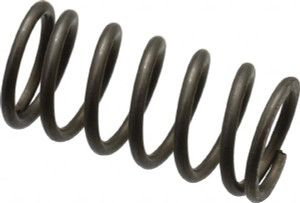

Gardner Spring 9mm OD 19mm Free Length Compression Spring 3.61 Lb Spring Rating, 33.15 Lb Max Workload, 7-1/2" Solid Height

Manufacturer Part #: MC065-0190-M

S/N: 02314185

UNSPSC: 31161904

UPC: 715153182717

(Minimum Order Quantity=1, Package Quantity=5)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)0.3540in
Outside Diameter (mm)9.00
Free Length (mm)19.00
Spring Rate18.9000in.lb
End TypeClosed, Ground
Maximum Work Load (Lb.)33.1500
MaterialStainless Steel
FinishPlain
Wire Size (Decimal Inch)0.0394
Spring TypePrecision
Solid Height (Decimal Inch)0.2950
Free Length (Decimal Inch)0.7480
ColorSilver
StandardsDIN 17223, DIN 17224, DIN 2095
UNSPSC Code31161904
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
