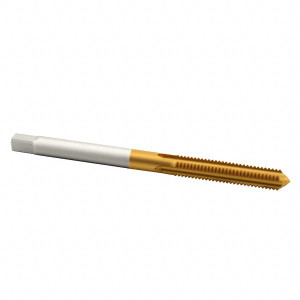

Cleveland Twist Drill #10-32 Plug RH 2B H3 TiN High Speed Steel 4-Flute Straight Flute Hand Tap 2-3/8" OAL, 7/8" Thread Length, UNF, Series 1002TN C55110 - 02522811
Brand: Cleveland Twist Drill- SKU:
- 02522811
- ID:
- 776921
$17.63
Cleveland Twist Drill #10-32 Plug RH 2B H3 TiN High Speed Steel 4-Flute Straight Flute Hand Tap 2-3/8" OAL, 7/8" Thread Length, UNF, Series 1002TN
Manufacturer Part #: C55110
S/N: 02522811
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Tap Type | Standard |
| Thread Size (Inch) | #10-32 |
| Overall Length (Decimal Inch) | 2.3750 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | H3 |
| Number Of Flutes | 4 |
| Oversize | No |
| Threads per Inch | 32 |
| Thread Length (Decimal Inch) | 0.5000 |
| Thread Length (Inch) | 7/8 |
| Overall Length (Inch) | 2-3/8 |
| Application | Blind Hole Threading, Through-Hole Threading |
| Shank Diameter (mm) | 4.93 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (mm) | 6.35 |
| Square Length (Decimal Inch) | 0.2500 |
| Square Length (Inch) | 1/4 |
| Square Size (mm) | 3.86 |
| Square Size (Decimal Inch) | 0.1520 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Free-Machining Stainless Steel |
| Series | 1002TN |
