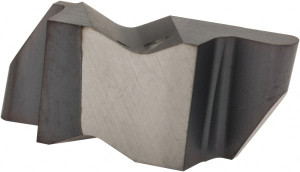

Kennametal NR3047R KC5010 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch 2599506 - 02611382

Kennametal NR3047R KC5010 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch 2599506 - 02611382

Brand:   Kennametal
SKU:
02611382
ID:
649738
callling
$46.48
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NR3047R KC5010 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch

Manufacturer Part #: 2599506

S/N: 02611382

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNR
Cutting Width (Decimal Inch)0.0941
Cutting Width (mm)2.39
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.1500
Maximum Depth of Cut (mm)3.81
Insert MaterialSolid Carbide
Manufacturer GradeKC5010
Full RadiusYes
Corner Radius (Decimal Inch)0.0469
Corner Radius (mm)1.19
RakeNeutral
Insert Size3047
Material GradeC3, C4
Maximum Depth Of Cut Range (Decimal Inch)0.1500 to 0.2000
Maximum Depth Of Cut Range (mm)3.00 to 4.00
Multi-use ToolNo
SeriesTop Notch
Coating ProcessPVD
Insert Seat Size3
MSC/Manufacturer NumberNR3047R/L
Insert Height (Decimal Inch)0.3440
Included Angle Degree55
Coating/FinishTiAlN
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
