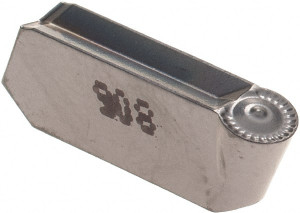

Iscar GIMY420F IC908 Carbide Grooving Insert TiAlN Finish, Neutral, 4mm Cutting Width, 2mm Max Depth, Series Cut Grip 6403719 - 02680486
Brand: Iscar- SKU:
- 02680486
- ID:
- 648582
$24.45
Iscar GIMY420F IC908 Carbide Grooving Insert TiAlN Finish, Neutral, 4mm Cutting Width, 2mm Max Depth, Series Cut Grip
Manufacturer Part #: 6403719
S/N: 02680486
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | GIMY |
| Insert Size Code | 420F |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 420 |
| Material Grade | Submicron |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6024 |
| Overall Length (mm) | 15.30 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | F |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Coating/Finish | TiAlN |
| Single Or Double End | Single |
