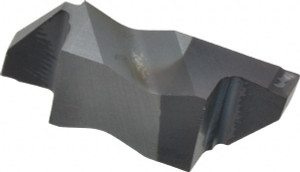

Kennametal NG3094RK KC5010 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch 1723607 - 02711125
Brand: Kennametal- SKU:
- 02711125
- ID:
- 649786
$42.55
Kennametal NG3094RK KC5010 Carbide Grooving Insert TiAlN Finish, RH, 2.39mm Cutting Width, 3.81mm Max Depth, Series Top Notch
Manufacturer Part #: 1723607
S/N: 02711125
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (mm) | 2.39 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 3.81 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5010 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Positive |
| Insert Size | 3094 |
| Material Grade | C3, C4 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Rake Angle | 10 |
| UNSPSC Code | 23242105 |
| Chip Breaker | K |
| MSC/Manufacturer Number | NG3094R/LK |
| Insert Height (Decimal Inch) | 0.3440 |
| Included Angle Degree | 55 |
| Coating/Finish | TiAlN |
