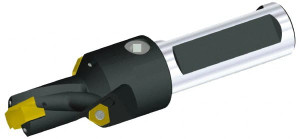

Kennametal 20.64 to 21.14mm, 8xD, 165.1mm Max Depth, 1" Shank Diam, 187.49mm Flute, 279.4mm OAL, Replaceable-Tip Drill Uses KSEM0813 Inserts, Seat Size 3, Series KSEM 1515716 - 02754240
Brand: Kennametal- SKU:
- 02754240
- ID:
- 645601
$947.50
Kennametal 20.64 to 21.14mm, 8xD, 165.1mm Max Depth, 1" Shank Diam, 187.49mm Flute, 279.4mm OAL, Replaceable-Tip Drill Uses KSEM0813 Inserts, Seat Size 3, Series KSEM
Manufacturer Part #: 1515716
S/N: 02754240
UNSPSC: 23291502
UPC: 634925743454
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.8126 |
| Minimum Drill Diameter (mm) | 20.64 |
| Maximum Drill Diameter (mm) | 21.14 |
| Maximum Drill Diameter (Decimal Inch) | 0.8323 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 165.10 |
| Maximum Drill Depth (Decimal Inch) | 6.5000 |
| Shank Type | Weldon Flat |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.40mm |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |
| Compatible Insert Style | KSEM0813 |
| Overall Length (mm) | 279.40mm |
| Series | KSEM |
| Flute Length (mm) | 187.49 |
| Flute Length (Decimal Inch) | 7.3815 |
| Shank Length (Decimal Inch) | 3.0000in |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
