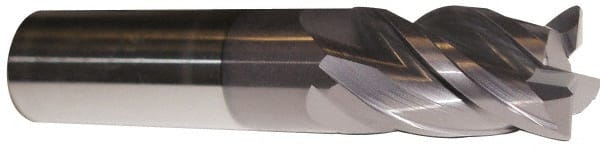

PROMAX Tools 1" Diam 4 Flute Solid Carbide 0.03" Corner Radius End Mill AlTiN Finish, 5" OAL, 2-3/4" LOC, 1" Shank Diam, 40° Helix, RH Cut, RH Flute 156-46434 - 02829364
Brand: PROMAX Tools- SKU:
- 02829364
- ID:
- 617930
$433.18
PROMAX Tools 1" Diam 4 Flute Solid Carbide 0.03" Corner Radius End Mill AlTiN Finish, 5" OAL, 2-3/4" LOC, 1" Shank Diam, 40° Helix, RH Cut, RH Flute
Manufacturer Part #: 156-46434
S/N: 02829364
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 2-3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Corner Radius Tolerance | -0.0010 to 0.0010 in |
| Mill Diameter Tolerance | -0.0020 to 0.0000 in |
| Shank Diameter Tolerance | -0.0001 to -0.0040 in |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | 156 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Coating Classification | PVD |
| For Use With. | Toolholder |
| Helix Style | High |
