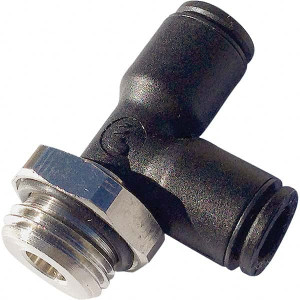

Legris Plastic Push-To-Connect Tube Fittings, Type: Male Run Tee, Tube Outside Diameter (mm): 6, Maximum Working Pressure (psi): 290.00, Glass Reinforced Nylon/Nickel Plated Brass, Thread Size: M5x0.8, Thread Type: Metric 3193 06 19 - 02895894
Brand: Legris- SKU:
- 02895894
- ID:
- 540375
$18.73
Legris Plastic Push-To-Connect Tube Fittings, Type: Male Run Tee, Tube Outside Diameter (mm): 6, Maximum Working Pressure (psi): 290.00, Material: Glass Reinforced Nylon/Nickel Plated Brass, Thread Size: M5x0.8, Thread Type: Metric
Manufacturer Part #: 3193 06 19
S/N: 02895894
UNSPSC: 27121707
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Material | Glass-Reinforced Nylon, Nickel-Plated Brass | |||
| Thread Size | M5x0.8 | |||
| Tube Outside Diameter (mm) | 6.00 | |||
| Maximum Working Pressure (Psi - 3 Decimals) | 290 | |||
| Overall Length (mm) | 33.00 | |||
| Standards | 2011/65/EC, DI | 1907/2006 (REACH), DI | 2002/95/EC (RoHS), DI | 97/23/EC (PED), ISO 14743 |
| Minimum Work Temperature (F) | -4 | |||
| Vacuum Rating | 28 in-Hg | |||
| O Ring Material | Nitrile | |||
| Maximum Work Temperature (Deg F - 3 Decimals) | 175 | |||
| UNSPSC Code | 27121700 |
