Made in USA 24 Pitch, 1.416" Pitch Diam, 1-1/2" OD, 34 Tooth Spur Gear 1/4" Face Width, 1/4" Bore Diam, 39/64" Hub Diam, 20° Pressure Angle, Acetal 2434 - 03125184

Made in USA 24 Pitch, 1.416" Pitch Diam, 1-1/2" OD, 34 Tooth Spur Gear 1/4" Face Width, 1/4" Bore Diam, 39/64" Hub Diam, 20° Pressure Angle, Acetal 2434 - 03125184

Brand:   Made in USA
SKU:
03125184
ID:
568959
callling
$9.08
Current Stock:
Adding to cart… The item has been added

Made in USA

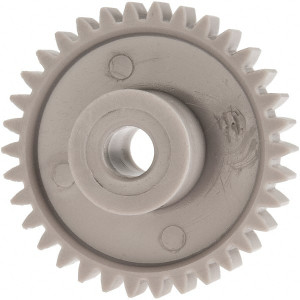

Made in USA 24 Pitch, 1.416" Pitch Diam, 1-1/2" OD, 34 Tooth Spur Gear 1/4" Face Width, 1/4" Bore Diam, 39/64" Hub Diam, 20° Pressure Angle, Acetal

Manufacturer Part #: 2434

S/N: 03125184

UNSPSC: 31171700

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Gear TypeSpur
Pitch Diameter (Decimal Inch)1.4160
Outside Diameter (Decimal Inch - 4 Decimals)1.5000
Face Width (Decimal Inch)0.2500
Face Width (Inch)1/4
Hub Diameter (Decimal Inch)0.6100
Hub Diameter (Inch)39/64
Pressure Angle20.0degree
MaterialAcetal
Diametral Pitch24
Bore Diameter (Inch)1/4
Bore Diameter (Decimal Inch)0.2500
Number Of Teeth34
Product Service Code3020
