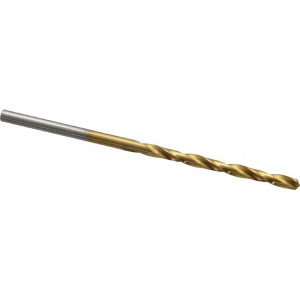

Chicago-Latrobe #39 135° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-3/8" OAL, Split Point 41709 - 03294964
Brand: Chicago-Latrobe- SKU:
- 03294964
- ID:
- 715632
$5.02
Chicago-Latrobe #39 135° High Speed Steel Jobber Drill TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 2-3/8" OAL, Split Point
Manufacturer Part #: 41709
S/N: 03294964
UNSPSC: 23241634
UPC: 662355417096
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #39 |
| Drill Bit Size (Decimal Inch) | 0.0995 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Cast Iron, Stainless Steel, Steel |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Titanium Nitride |
| Flute Length (Inch) | 1-3/8 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 2-3/8 |
| Spiral Type | Regular |
| Series | 150ASP-TN |
| Shank Length (mm) | 25.40 |
| Shank Length (Decimal Inch) | 1.0000 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | NAS 907 Type B |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
