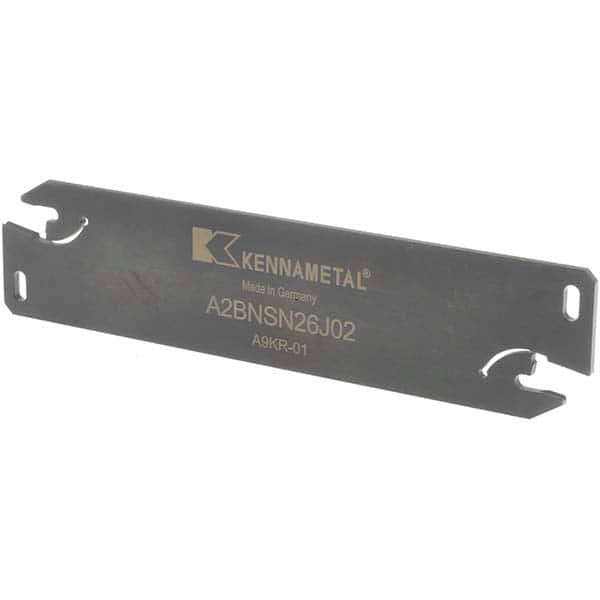

Kennametal A2BNSN Double End Neutral Indexable Cutoff Blade 26mm High x 1.8mm Wide x 110mm OAL, 2.2mm Insert Width, Series A2 Cut-Off 1245572 - 03311495
Brand: Kennametal- SKU:
- 03311495
- ID:
- 684934
$191.88
Kennametal A2BNSN Double End Neutral Indexable Cutoff Blade 26mm High x 1.8mm Wide x 110mm OAL, 2.2mm Insert Width, Series A2 Cut-Off
Manufacturer Part #: 1245572
S/N: 03311495
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| End Type | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (Decimal Inch) | 0.0709 |
| Blade Width (mm) | 1.80 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | A2BNSN |
| Insert Holding Method | Self Grip |
| Series | A2 Cut-Off |
| Insert Style | A2 022... |
| Insert Width (mm) | 2.20 |
| Insert Seat Size | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Maximum Depth of Cut (mm) | 25.00 |
| Cutting Height (mm) | 21.50 |
| Cutting Height (Decimal Inch) | 0.8465 |
| Minimum Insert Width (Decimal Inch) | 0.0866 |
| Minimum Insert Width (mm) | 2.20 |
| MSC/Manufacturer Number | A2BNSN26J02 |
| Insert Width | 0.0866 |
| Coating Classification | Kennametal |
