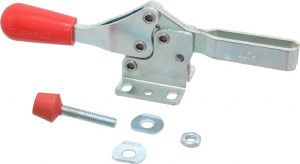

Destaco 200 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 61° Handle Movement, 91° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel 217-U - 03583770
Brand: Destaco- SKU:
- 03583770
- ID:
- 441365
$24.09
Destaco 200 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 61° Handle Movement, 91° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Manufacturer Part #: 217-U
S/N: 03583770
UNSPSC: 31162902
UPC: 697437521705
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Horizontal | ||
| Bar Style | U-Bar | ||
| Base Style | Flanged | ||
| Bar End Type | Fixed Spindle | ||
| Holding Capacity (N) | 890.00 | ||
| Holding Capacity (Lb.) | 200.00 | ||
| Length Distance Between Mount Holes (mm) | 26.16 | ||
| Length Distance Between Mount Holes | 1.03in, 26.16mm | ||
| Length Distance Between Mount Holes (Inch) | 1.03 | ||
| Width Distance Between Mount Holes (mm) | 28.45 | ||
| Width Distance Between Mount Holes | 1.12in, 28.45mm | ||
| Width Distance Between Mount Holes (Decimal Inch) | 1.1200 | ||
| Height Under Bar (Decimal Inch) | 0.9200 | ||
| Height Under Bar (mm) | 23.37 | ||
| Overall Length (mm) | 167.13 | ||
| Overall Length (Decimal Inch) | 6.5800 | ||
| Overall Height (Decimal Inch) | 1.9500 | ||
| Overall Height (Mm - 5 Decimals) | 49.53 | ||
| Base Length (mm) | 37.08 | ||
| Base Width (Inch) | 1.5500 | ||
| Base Width | 39.37 | ||
| Handle Style | Straight | ||
| Material | Carbon Steel | ||
| Handle Material | Carbon Steel | ||
| Handle Color | Red | ||
| Mounting Hole Diameter (mm) | 5.50 | ||
| Mounting Hole Diameter (Decimal Inch) | 0.2200 | ||
| Bar Opening (Degrees) | 91 | ||
| Handle Movement (Degrees) | 61 | ||
| Maximum Mechanical Advantage | 03 | 01, 07 | 01 |
| Spindle Thread Size | M6x1.0 | ||
| Spindle Length (mm) | 44.00 | ||
| Spindle Travel (Inch) | 1.5400 | ||
| Spindle Travel (mm) | 39.12 | ||
| Bar Width (mm) | 12.45 | ||
| Bar Width (Decimal Inch) | 0.4900 | ||
| UNSPSC Code | 31162902 | ||
| Front Of Base To Toggle Tip | 2.30in | ||
| Includes | (1) Spindle, (2) Nuts, (2) Washers | ||
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.3000 | ||
| Front of Base To Tip Of Toggle Bar (mm) | 58.42 | ||
| Number Of Mounting Holes | 6 | ||
| Finish Coating | Zinc |
