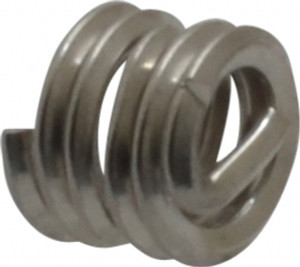

HeliCoil Screw-Locking Insert: Stainless Steel, #4-40 UNC, 1-1/2D 0.168" OAL, Tanged, Grade 18-8 Stainless Steel A3585-04EN168 - 03585304
Brand: HeliCoil- SKU:
- 03585304
- ID:
- 786145
$3.03
HeliCoil Screw-Locking Insert: Stainless Steel, #4-40 UNC, 1-1/2D 0.168" OAL, Tanged, Grade 18-8 Stainless Steel
Manufacturer Part #: A3585-04EN168
S/N: 03585304
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Thread Size (Inch) | #4-40 |
| Insert Length (Decimal Inch) | 0.1680 |
| Overall Insert Length (Decimal Inch) | 0.1680 |
| Tang | Tanged |
| Thread Standard | UNC |
| Material | Stainless Steel |
| Number of Free Coils | 4-3/4 |
| Length to Diameter Ratio | 1-1/2D |
| Minimum Outside Diameter (Decimal Inch) | 0.1440 |
| Maximum Outside Diameter (Decimal Inch) | 0.1590 |
| Material Grade | 18-8 |
| Maximum Locking Torque (oz-in) | 48 |
| Mininum Break Away Torque (oz-in) | 10.00 |
| Number Of Inserts | 1 |
