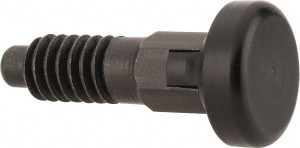

Vlier M12x1.75, 25mm Thread Length, 0.314" Max Plunger Diam, 0.56 Lb Init to 1.8 Lb Final End Force, Locking Knob Handle Plunger Delrin Knob, 1.2" Body Length, 0.98" Length Under Head/Shoulder, 0.236" Plunger Projection SMPRTL12 - 03680485
Brand: Vlier- SKU:
- 03680485
- ID:
- 447053
$61.17
Vlier M12x1.75, 25mm Thread Length, 0.314" Max Plunger Diam, 0.56 Lb Init to 1.8 Lb Final End Force, Locking Knob Handle Plunger Delrin Knob, 1.2" Body Length, 0.98" Length Under Head/Shoulder, 0.236" Plunger Projection
Manufacturer Part #: SMPRTL12
S/N: 03680485
UNSPSC: 39121500
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Length (mm) | 25.00 |
| Plunger Type | Locking |
| Knob Style | Delrin |
| Body Length (mm) | 30.48 |
| Body Length (Decimal Inch) | 1.2000 |
| Length Under Head/Shoulder (mm) | 24.89 |
| Length Under Head/Shoulder (Decimal Inch) | 0.9800 |
| Plunger Projection (mm) | 5.99 |
| Plunger Projection (Decimal Inch) | 0.2360 |
| Maximum Plunger Diameter (mm) | 7.98 |
| Maximum Plunger Diameter (Decimal Inch) | 0.3140 |
| Initial End Force (N) | 2.50 |
| Initial End Force (Lb.) | 0.56 |
| Final End Force (N) | 8.00 |
| Final End Force (Lb.) | 1.80 |
| Locking Element | No |
| Plunger Length (mm) | 46.99 |
| Plunger Length (Decimal Inch) | 1.8500 |
| Head Diameter (mm) | 24.89 |
| Head Diameter (Decimal Inch) | 0.9800 |
| Head & Shoulder Height (mm) | 22.10 |
| Head & Shoulder Height (Decimal Inch) | 0.8700 |
| Hex Size (mm) | 11.99 |
| Hex Size (Decimal Inch) | 0.4720 |
| PSC Code | 3419 |
