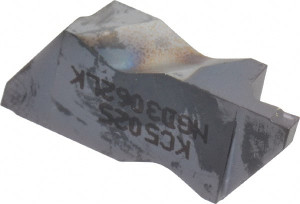

Kennametal NGD3062LK KC5025 Carbide Grooving Insert TiAlN Finish, LH, 1.58mm Cutting Width, 3.18mm Max Depth, Series Top Notch 1818111 - 03822905
Brand: Kennametal- SKU:
- 03822905
- ID:
- 649851
$42.35
Kennametal NGD3062LK KC5025 Carbide Grooving Insert TiAlN Finish, LH, 1.58mm Cutting Width, 3.18mm Max Depth, Series Top Notch
Manufacturer Part #: 1818111
S/N: 03822905
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NGD |
| Cutting Width (Decimal Inch) | 0.0622 |
| Cutting Width (mm) | 1.58 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (mm) | 3.18 |
| Insert Material | Carbide |
| Manufacturer Grade | KC5025 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Positive |
| Insert Size | 3062 |
| Material Grade | C2, C6 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Lead Angle | 3 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Rake Angle | 10 |
| UNSPSC Code | 23242105 |
| Chip Breaker | K |
| Included Angle Degree | 55 |
| Coating/Finish | TiAlN |
