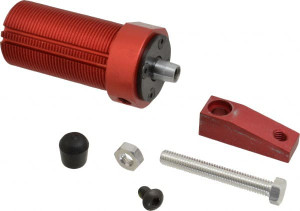

Destaco 67 Lb Clamping Force, Left Hand Swing, 31.75mm Total Stroke, Double-Acting Pneumatic Swing Clamp 1/8 NPT Port, 80.5mm Body Length x 54.1mm Body Width, 1.17 Cu In (Clamp), 1.42 Cu In (Unclamp), 130 Max psi 8416 - 03859956

Destaco 67 Lb Clamping Force, Left Hand Swing, 31.75mm Total Stroke, Double-Acting Pneumatic Swing Clamp 1/8 NPT Port, 80.5mm Body Length x 54.1mm Body Width, 1.17 Cu In (Clamp), 1.42 Cu In (Unclamp), 130 Max psi 8416 - 03859956

Brand:   Destaco
SKU:
03859956
ID:
438949
callling
$714.34
Current Stock:
Adding to cart… The item has been added

Destaco

Destaco 67 Lb Clamping Force, Left Hand Swing, 31.75mm Total Stroke, Double-Acting Pneumatic Swing Clamp 1/8 NPT Port, 80.5mm Body Length x 54.1mm Body Width, 1.17 Cu In (Clamp), 1.42 Cu In (Unclamp), 130 Max psi

Manufacturer Part #: 8416

S/N: 03859956

UNSPSC: 23153000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Operation TypeAir
Action TypeSingle
Swing DirectionLeft Hand
Clamping Force (Lb.)67.44
Clamping Force (N)300.00
Operating Volume (cc)19.17 (Clamp), 23.27 (Unclamp)
Operating Volume (Cu. In.)1.1700 (Clamp), 1.4200 (Unclamp)
Mount TypeThreaded Body
Total Stroke Distance (mm)31.75
Total Stroke Distance (Decimal Inch)1.2500
Body Length (Decimal Inch)3.1693
Body Length80.50
Body Diameter (Decimal Inch)2.1299
Body Diameter (mm)54.10
Vertical Stroke Distance (Decimal Inch)0.5000
Vertical Stroke Distance (mm)12.70
Vertical Stroke Distance (Inch)1/2
Rod Diameter (mm)12.70
Rod Diameter (Decimal Inch)0.5000
Clamp Arm Compatibility821512 Standard Clamping Arm, 821554 T-Style Clamping Arm, 821555 T-Style Clamping Arm, 841512 Standard Clamping Arm
Body Thread Size1-3/4-12
Body Width/Diameter (mm)54.10
Body Width/Diameter (Decimal Inch)2.1299
Maximum Operating Pressure (psi)130
Minimum Operating Pressure (bar)3.00
Port Size1/8 NPT
IncludesClamping Arm, Spindle
FeaturesThreaded Body Mounted in a Tapped Hole
Bin3.17
K (In)1.9400
C (In)0.7500
Tapped Depth0.3800
Overall Open Length (Decimal Inch)6.1400
UNSPSC Code27112100
E (in)2.1300
F -In--0.9800
