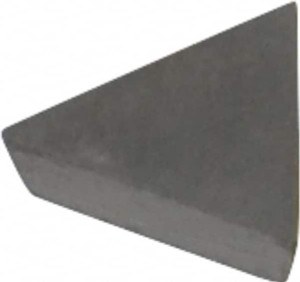

Value Collection TPEE730 I22 Carbide Turning Insert Uncoated, 7/32" Inscribed Circle, 0.2mm Corner Radius, 3/32" Thick, 60° Triangle 41168 - 04007001
Brand: Value Collection- SKU:
- 04007001
- ID:
- 678157
$16.30
Value Collection TPEE730 I22 Carbide Turning Insert Uncoated, 7/32" Inscribed Circle, 0.2mm Corner Radius, 3/32" Thick, 60° Triangle
Manufacturer Part #: 41168
S/N: 04007001
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | TPEE730 |
| ISO Insert Code | TPEE090202 |
| Relief Angle | 11 |
| Insert Style | TPEE |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 60 |
| Manufacturer Grade | I22 |
| Coating/Finish | Bright/Uncoated |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (mm) | 5.56 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Insert Holding Method | Clamp |
| Clearance Code | P |
| Tolerance Code | E |
| Rake | Positive |
| Primary Workpiece Material Code | K, M, N, S |
| Material Grade | C2 |
| Chip Breaker | E |
| ANSI Size Code | 730 |
| ISO Size Code | 090202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 730 |
