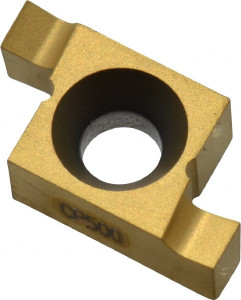

Seco Tools 10NR.086FG CP500 Carbide Grooving Insert TiAlN/TiN Finish, RH, 0.086" Cutting Width, 0.086" Max Depth, Series Snap Tap 00731879 - 04024071
Brand: Seco Tools- SKU:
- 04024071
- ID:
- 651638
$46.80
Seco Tools 10NR.086FG CP500 Carbide Grooving Insert TiAlN/TiN Finish, RH, 0.086" Cutting Width, 0.086" Max Depth, Series Snap Tap
Manufacturer Part #: 00731879
S/N: 04024071
UNSPSC: 23242105
(Minimum Order Quantity=2)
(Please order in multiples of 2)
Specifications:
| Insert Style | 10NR |
| Insert Size Code | 10086 |
| Cutting Width (Decimal Inch) | 0.0860in |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0860 |
| Insert Material | Carbide |
| Manufacturer Grade | CP500 |
| Full Radius | No |
| Insert Holding Method | Clamp |
| Insert Size | 086 |
| Material Grade | Micrograin |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Multi-use Tool | No |
| Series | Snap Tap |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3543in |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, O, P, S |
| Standards | ISO |
| UNSPSC Code | 23242105 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Chip Breaker | FG |
| Insert Seat Size | 10 |
| Inscribed Circle (Inch) | 1/4 |
| Coating/Finish | TiAlN, TiN |
