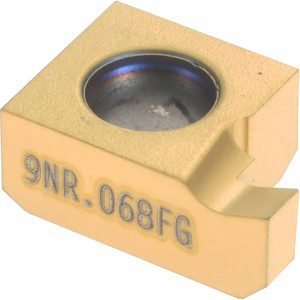

Seco Tools 9NR.068FG CP500 Carbide Grooving Insert TiAlN/TiN Finish, RH, 0.068" Cutting Width, 0.068" Max Depth, Series Snap Tap 00077956 - 04024675
Brand: Seco Tools- SKU:
- 04024675
- ID:
- 651644
$38.08
Seco Tools 9NR.068FG CP500 Carbide Grooving Insert TiAlN/TiN Finish, RH, 0.068" Cutting Width, 0.068" Max Depth, Series Snap Tap
Manufacturer Part #: 00077956
S/N: 04024675
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 9NR |
| Insert Size Code | 9068 |
| Cutting Width (Decimal Inch) | 0.0680 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0680 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CP500 |
| Full Radius | No |
| Insert Holding Method | Clamp |
| Insert Size | 068 |
| Material Grade | Micrograin |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Multi-use Tool | No |
| Series | Snap Tap |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3543 |
| Overall Length (mm) | 9.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, O, P, S |
| Standards | ISO |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Chip Breaker | FG |
| Insert Seat Size | 9 |
| Inscribed Circle (Inch) | 1/4 |
| Style | 9NR 0.068 |
| Coating/Finish | TiAlN, TiN |
