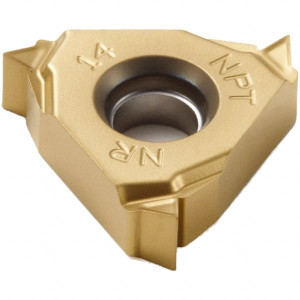

Seco Tools 16NR14NPT-A2 CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH Internal NPT Thread, 14 TPI, 3/8" Inscribed Circle, 0.1366" Thick 00077975 - 04024899
Brand: Seco Tools- SKU:
- 04024899
- ID:
- 665550
$41.10
Seco Tools 16NR14NPT-A2 CP500 Carbide Laydown Threading Insert TiAlN/TiN Finish, RH Internal NPT Thread, 14 TPI, 3/8" Inscribed Circle, 0.1366" Thick
Manufacturer Part #: 00077975
S/N: 04024899
UNSPSC: 23291804
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 16NR |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CP500 |
| Material Grade | Micrograin |
| Threads Per Inch | 14 |
| Thread Type | Internal |
| Thread Standard | NPT |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | A2 |
| Series | Snap Tap |
| Coating Process | PVD |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0030 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Standards | ISO |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0430 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0590 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1366 |
| Coating/Finish | Coated |
