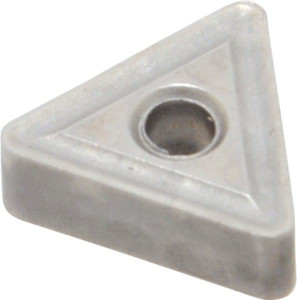

Value Collection TNMG222 I55 Carbide Turning Insert Uncoated, Neutral, 11mm Long, 1/4" Inscribed Circle, 1/32" Corner Radius, 60° Triangle TNMG110308NSC30 - 04072229
Brand: Value Collection- SKU:
- 04072229
- ID:
- 678192
$14.55
Value Collection TNMG222 I55 Carbide Turning Insert Uncoated, Neutral, 11mm Long, 1/4" Inscribed Circle, 1/32" Corner Radius, 60° Triangle
Manufacturer Part #: TNMG110308NSC30
S/N: 04072229
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | TNMG222 |
| ISO Insert Code | TNMG110308 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | I55 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.26 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material Code | P |
| Material Grade | C5, C6 |
| Chip Breaker | G |
| ANSI Size Code | 222 |
| ISO Size Code | 110308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 222 |
