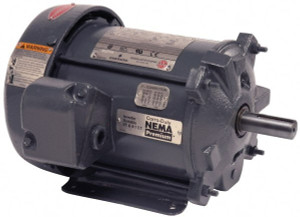

U.S. Motors 1 hp, TEFC Enclosure, No Thermal Protection, 1,155 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 145T Frame, Rigid Mount, 1 Speed, Ball Bearings, 3.5/1.8 Full Load Amps, Reversible C1P3B - 04087896
Brand: U.S. Motors- SKU:
- 04087896
- ID:
- 573861
$1,298.63
U.S. Motors 1 hp, TEFC Enclosure, No Thermal Protection, 1,155 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 145T Frame, Rigid Mount, 1 Speed, Ball Bearings, 3.5/1.8 Full Load Amps, F Class Insulation, Reversible
Manufacturer Part #: C1P3B
S/N: 04087896
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Premium Efficient |
| Enclosure Style | TEFC |
| Horsepower | 1 |
| Name Plate RPMs | 1155 |
| Voltage | 230, 460V |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 145T |
| Mount Style | Rigid |
| Mount Type | Rigid |
| Bearing Type | Ball |
| Full Load Amperage | 3.5/1.8 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Shaft Diameter x Length | 7/8 x 2-1/4 in |
| Full Load Efficiency Rating | 82.50 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Overall Length (Decimal Inch) | 13.8800 |
| Dayton Part Number | 5N796 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
