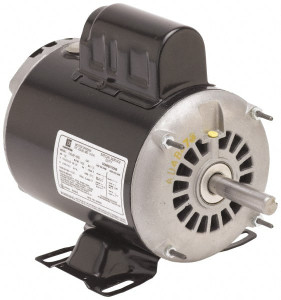

U.S. Motors 2 hp, ODP Enclosure, No Thermal Protection, 1,740 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 213 Frame, Rigid Mount, 1 Speed, Ball Bearings, 24.6/12.3 Full Load Amps D2C2P21Z - 04092516
Brand: U.S. Motors- SKU:
- 04092516
- ID:
- 573460
$2,054.30
U.S. Motors 2 hp, ODP Enclosure, No Thermal Protection, 1,740 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 213 Frame, Rigid Mount, 1 Speed, Ball Bearings, 24.6/12.3 Full Load Amps, F Class Insulation
Manufacturer Part #: D2C2P21Z
S/N: 04092516
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Enclosure Style | ODP |
| Horsepower | 2 |
| Name Plate RPMs | 1740 |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 213 |
| Mount Style | Rigid |
| Mount Type | Rigid |
| Bearing Type | Ball |
| Full Load Amperage | 24.6/12.3 |
| Insulation Class | F |
| Shaft Diameter x Length | 1-1/8 x 3 in |
| Service Factor Rating | 1.15 |
| Overall Length (Decimal Inch) | 15.0300 |
| Dayton Part Number | 5K482 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | ODP |
| Product Service Code | 6105 |
