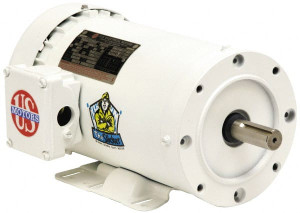

U.S. Motors 1 hp, TEFC Enclosure, No Thermal Protection, 1,725 RPM, 230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor Size 56C Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 3.6/1.8 Full Load Amps, Reversible WD1S2AC - 04177440
Brand: U.S. Motors- SKU:
- 04177440
- ID:
- 573705
$462.98
U.S. Motors 1 hp, TEFC Enclosure, No Thermal Protection, 1,725 RPM, 230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor Size 56C Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 3.6/1.8 Full Load Amps, F Class Insulation, Reversible
Manufacturer Part #: WD1S2AC
S/N: 04177440
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Energy Efficient |
| Enclosure Style | TEFC |
| Horsepower | 1 |
| Name Plate RPMs | 1725 |
| Voltage | 230, 460V |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 56C |
| Mount Style | Base, C-Face |
| Mount Type | Base, C-Face |
| Bearing Type | Ball |
| Full Load Amperage | 3.6/1.8 |
| Insulation Class | F |
| Frame Material | Steel |
| Shaft Diameter x Length | 5/8 x 2-1/16 in |
| Full Load Efficiency Rating | 78.50 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Applications | Washdown |
| Overall Length (Decimal Inch) | 11.5700 |
| Dayton Part Number | 5M259 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
