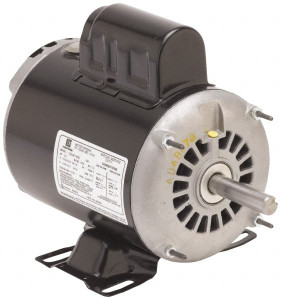

U.S. Motors 2 hp, ODP Enclosure, No Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 23.0/11.5 Full Load Amps, Reversible D2C1JH - 04180162
Brand: U.S. Motors- SKU:
- 04180162
- ID:
- 573740
$564.03
U.S. Motors 2 hp, ODP Enclosure, No Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 23.0/11.5 Full Load Amps, B Class Insulation, Reversible
Manufacturer Part #: D2C1JH
S/N: 04180162
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Enclosure Style | ODP |
| Horsepower | 2 |
| Name Plate RPMs | 3450 |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 56 |
| Mount Style | Rigid |
| Mount Type | Rigid |
| Bearing Type | Ball |
| Full Load Amperage | 23/11.5 |
| Insulation Class | B |
| Shaft Diameter x Length | 5/8 x 1-7/8 in |
| Full Load Efficiency Rating | 80.80 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Applications | General Purpose |
| Overall Length (Decimal Inch) | 12.2500 |
| Dayton Part Number | 6K138 |
| Ambient Operating Temperature (F) | 40 |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | ODP |
| Product Service Code | 6105 |
