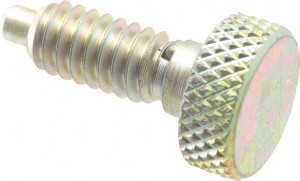

Gibraltar 1/4-20, 1/2" Thread Length, 0.123" Max Plunger Diam, 1 Lb Init to 4 Lb Final End Force, Knob Handle Plunger Knurled Knob, 0.79" Body Length, 1/2" Length Under Head/Shoulder, 1/8" Plunger Projection KNL-1-G - 04455333
Brand: Gibraltar Products- SKU:
- 04455333
- ID:
- 446879
$9.28
Gibraltar 1/4-20, 1/2" Thread Length, 0.123" Max Plunger Diam, 1 Lb Init to 4 Lb Final End Force, Knob Handle Plunger Knurled Knob, 0.79" Body Length, 1/2" Length Under Head/Shoulder, 1/8" Plunger Projection
Manufacturer Part #: KNL-1-G
S/N: 04455333
UNSPSC: 39121500
UPC: 643768101024
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Length (Decimal Inch) | 0.5in |
| Plunger Projection | 0.125in |
| Plunger Length | 0.813in |
| Plunger Diameter Tolerance | #XL_EVAL_ERROR# |
| Plunger Type | Non-Locking |
| Initial End Force | 1lb |
| Knob Style | Knurled |
| Final End Force | 4lb |
| Body Length (Decimal Inch) | 0.7900 |
| Thread Size | 1/4-20 in |
| Length Under Head/Shoulder (Decimal Inch) | 0.5000 |
| Plunger Projection (Decimal Inch) | 0.1250 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1230 |
| Initial End Force (Lb.) | 1.00 |
| Body Length | 0.79in |
| Final End Force (Lb.) | 4.00 |
| Locking Element | No |
| Maximum Plunger Diameter | 0.123in |
| Material | Steel |
| Finish | Gold Zinc Chromate |
| Plunger Length (Decimal Inch) | 0.8130 |
| Head Diameter (Decimal Inch) | 0.5in |
| Head Height (Decimal Inch) | 0.19in |
| Head & Shoulder Height (Decimal Inch) | 0.3130 |
| Plunger Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
