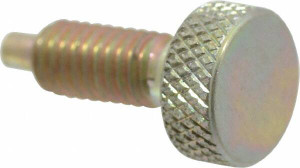

Gibraltar 5/16-18, 5/8" Thread Length, 0.154" Max Plunger Diam, 1 Lb Init to 6 Lb Final End Force, Knob Handle Plunger Knurled Knob, 0.76" Body Length, 5/8" Length Under Head/Shoulder, 3/16" Plunger Projection KNL-2-G - 04455358
Brand: Gibraltar Products- SKU:
- 04455358
- ID:
- 446881
$10.46
Gibraltar 5/16-18, 5/8" Thread Length, 0.154" Max Plunger Diam, 1 Lb Init to 6 Lb Final End Force, Knob Handle Plunger Knurled Knob, 0.76" Body Length, 5/8" Length Under Head/Shoulder, 3/16" Plunger Projection
Manufacturer Part #: KNL-2-G
S/N: 04455358
UNSPSC: 39121500
UPC: 643768101031
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Length (Decimal Inch) | 0.6250 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 0.7600 |
| Length Under Head/Shoulder (Decimal Inch) | 0.6250 |
| Plunger Projection (Decimal Inch) | 0.1880 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1540 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 6.00 |
| Locking Element | No |
| Plunger Length (Decimal Inch) | 1.0000 |
| Head Diameter (Decimal Inch) | 0.6300 |
| Head Height (Decimal Inch) | 0.2500 |
| Head & Shoulder Height (Decimal Inch) | 0.3750 |
| Plunger Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
