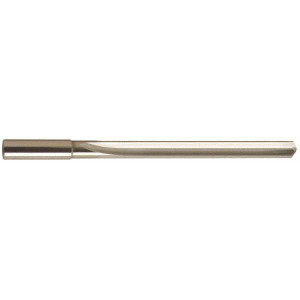

Guhring #12, 4.8mm, 120° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 57mm Flute Length, 97mm OAL, Through Coolant 9007690048000 - 04534400
Brand: Guhring- SKU:
- 04534400
- ID:
- 742940
$237.98
Guhring #12, 4.8mm, 120° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 57mm Flute Length, 97mm OAL, Through Coolant
Manufacturer Part #: 9007690048000
S/N: 04534400
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Wire) | #12 |
| Drill Bit Size (mm) | 4.80 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (mm) | 57.00 |
| Drill Point Angle | 120 |
| Overall Length (mm) | 97.00 |
| Shank Diameter (mm) | 6.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Material Grade | Submicron |
| Series | 769 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.004 to +0.016 mm |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | K, N |
| Secondary Workpiece Material | Aluminum, Aluminum Alloy, Cast Iron |
| Maximum Drilling Depth (Decimal Inch) | 1.9610 |
| Maximum Drilling Depth (mm) | 49.80 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 7xD |
| Specification Number | DIN 6535HA |
