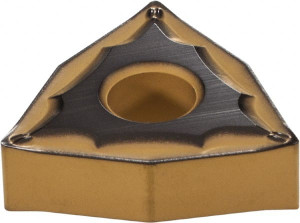

Sumitomo WNMG 431 ESU AC630M Carbide Turning Insert Al2O3 Finish, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Trigon 19PWAPF - 04589552
Brand: Sumitomo- SKU:
- 04589552
- ID:
- 677036
$15.67
Sumitomo WNMG 431 ESU AC630M Carbide Turning Insert Al2O3 Finish, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Trigon
Manufacturer Part #: 19PWAPF
S/N: 04589552
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80 |
| Manufacturer Grade | AC630M |
| Coating/Finish | Al2O3 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | TN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3425 |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | WNMG080404N-SU |
| Standards | ANSI, ISO 13399 |
| Material Grade | C5, C5A, C6, C7 |
| Chip Breaker | ESU |
| Rake Angle | 13 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
