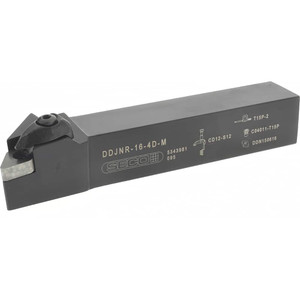

Seco Tools RH DDJN -6° Negative Rake Indexable Turning Toolholder 93° Lead Angle, 1" x 1" Shank, Takes DNMG 432 Inserts 02569288 - 04850517
Brand: Seco Tools- SKU:
- 04850517
- ID:
- 687355
$240.02
Seco Tools RH DDJN -6° Negative Rake Indexable Turning Toolholder 93° Lead Angle, 1" x 1" Shank, Takes DNMG 432 Inserts
Manufacturer Part #: 02569288
S/N: 04850517
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | DDJN |
| Hand of Holder | Right Hand |
| Insert Compatibility | DNMG 432 |
| Insert Holding Method | Clamp |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | DN43/DN44 |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Dual Clamp |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.6500 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
