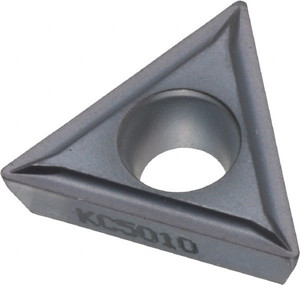

Kennametal TPMT3251LF KC5010 Carbide Turning Insert TiAlN Finish, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60° Triangle, Series Screw-On 1871111 - 04946232
Brand: Kennametal- SKU:
- 04946232
- ID:
- 671488
$38.08
Kennametal TPMT3251LF KC5010 Carbide Turning Insert TiAlN Finish, Neutral, 16.5mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60° Triangle, Series Screw-On
Manufacturer Part #: 1871111
S/N: 04946232
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | TPMT3251 |
| ISO Insert Code | TPMT16T304 |
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | KC5010 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | Screw-On |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing, Light Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Aluminum & No |
| Number Of Cutting Edges | 3 |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (mm) | 16.50 |
| Insert Length (Decimal Inch) | 0.6495 |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, N, S |
| Secondary Workpiece Material Code | N, P, S |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 1871111 |
| Material Grade | C3, C4 |
| Coating Classification | PVD |
| Chip Breaker | LF |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPMT3251LF |
| Width (Decimal Inch - 4 Decimals) | 0.6495 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| ANSI Size Code | 3251 |
| ISO Size Code | 16T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3251 |
