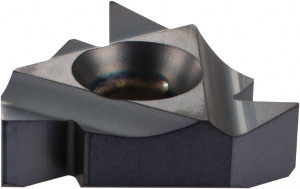

Iscar 22IR N 60 IC908 Carbide Laydown Threading Insert TiAlN Finish, RH Internal Partial Profile 60° Thread, 7-5 TPI, 1/2" Inscribed Circle, 0.188" Thick 5901912 - 05095534

Iscar 22IR N 60 IC908 Carbide Laydown Threading Insert TiAlN Finish, RH Internal Partial Profile 60° Thread, 7-5 TPI, 1/2" Inscribed Circle, 0.188" Thick 5901912 - 05095534

Brand:   Iscar
SKU:
05095534
ID:
664909
callling
$40.41
Current Stock:
Minimum Purchase:
5 units
Adding to cart… The item has been added

Iscar

Iscar 22IR N 60 IC908 Carbide Laydown Threading Insert TiAlN Finish, RH Internal Partial Profile 60° Thread, 7-5 TPI, 1/2" Inscribed Circle, 0.188" Thick

Manufacturer Part #: 5901912

S/N: 05095534

UNSPSC: 23291804

(Minimum Order Quantity=5)

(Please order in multiples of 5)

Specifications:

Insert Style22IR
Insert Size Code22
Insert MaterialSolid Carbide
Manufacturer GradeIC908
Material GradeC1, C2, C6, C7
Threads Per Inch7-5
Thread TypeInternal
Pitch (mm)3.50 to 5.00
Insert HandRight Hand
SeriesISCARTHREAD
Coating ProcessPVD
Inscribed Circle (mm)12.70
Inscribed Circle (Decimal Inch)0.5000
Inscribed Circle (Inch)1/2
Corner Radius (mm)0.22
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeH, K, M, N, P, S
Iso CodeISO 13399
StandardsISO 13399
Thickness (Decimal Inch - 4 Decimals)0.1880
Coating/FinishCoated
